Die-formed automatic Toffee Production Line

 Features of this production line:

1 PLC automatic programming control sugar boiling temperature, time, pouring temperature and pouring speed;

2 9.7 "large LED touch screen display is easier to operate;

3.The production capacity can be from 150 kg to 450 kg per hour;

4 Frequency conversion speed control sugar liquid flow;

5. Complete quantitative filling and mixing of flavor, pigment and acid on line;

6 Conveyor chain belt, cooling system, double demoulding mechanism to ensure demoulding;

7.The whole production line is manufactured according to the standard, in line with the hygiene requirements of food GMP.

Technological process of Filled/unfilled toffee candy production line

Sugar melting cooker(Electric cooker)-Storage tank-Air inflation mixing and cooking machine(mixing machine)-Cooling table-Center filling machine-Batch roller-Rope sizer-Conveyor-Candy forming machine-Cooling sifter-packaging machine

Main component equipment of toffee production line

Air inflation mixing and cooking machine

Technical Parameters:

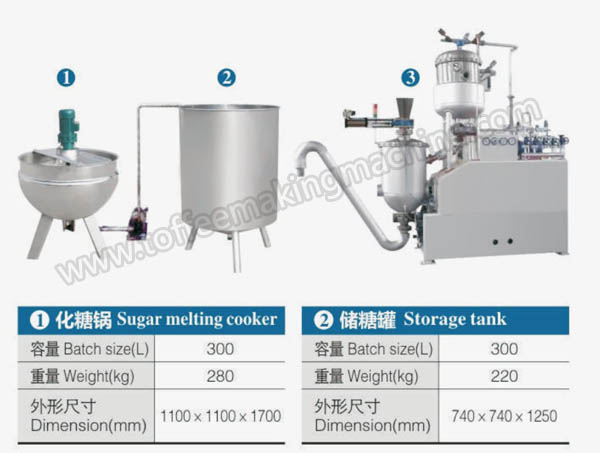

1. Sugae melting cooker

a) Batch size: 300L

b) Weight: 280kg

c) Dimension: 1100*1100*1700mm

2. Storage tank

a) Batch size: 300L

b) Weight: 220kg

c) Dimension: 740*740*1250mm

3. Air inflation mixing and cooking machine

a) Model: CY-300

b) Capacity: 300kg/h

c) Steam pressure: 0.7mpa

d) Steam consumption: 160kg/h

e) Compressed air pressure: 0.6mpa

f) Compressed air consumption: ＜0.25m³/min

g) Vacuum pressure: -0.06mpa

h) Vacuum pump power: 4kw

i) Main motor power: 17kw

j) Aerating pressure: ＜0.3mpa

k) Dimension: 2500*1500*3200mm

l) Machine weight: 1500kg

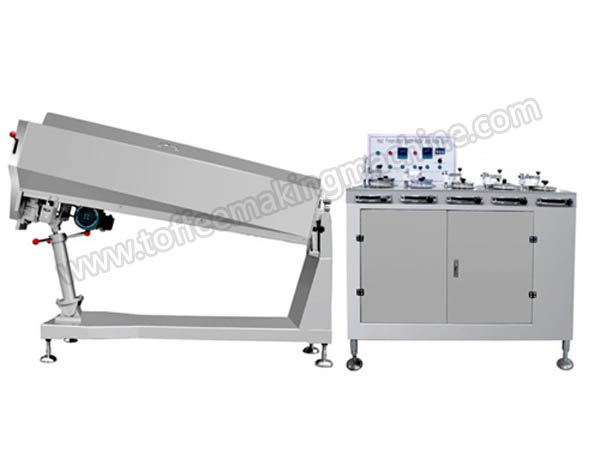

Heat preservation batch roller and rope sizer

Technical parameter:

1. Batch roller maximum capacity: 0.18m³

2. Running speed: ≤25m/min

3. Total power: 6.3kw

4. Weight: 720kg

5. Dimension: 3700*800*1700mm

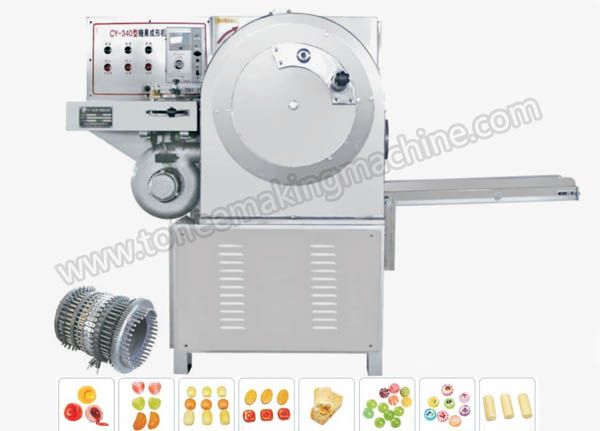

It is suitable for production of hard candies, gaining creamy candies, toffees and filled candies, as well as production of cushions (candy shapes varying according to customer requirements), such as: spherical, oblate, oval and other irregular shapes.
